GTLED PRO

HIGH PERFORMANCE TUNNEL LIGHTING FROM ENTRANCE TO EXIT

Features

GTLED Pro is a high-performance, long-life LED tunnel lighting solution designed for all tunnel and underpass applications, delivering uniform, comfortable illumination from entrance to exit. Its robust, corrosion-resistant construction, wide range of optics, and easy installation and maintenance make it a versatile solution for demanding tunnel environments.

Up to 170 lm/W

C5 corrosion resistance

Up to 100,000 hours L98 at Ta 25 °C

TI < 6

IP66

12 LEDs (3000 lm at 25 °C) to 216 LEDs (69000 lm at 25 °C)

Urba Deco in use at Kings Stables Road Edinburgh

LIGHTING COMFORT WITH VERSATILITY

GTLED Pro offers a wide range of optics to suit many tunnel configurations. It is a versatile solution with five luminaire sizes and remote gear boxes to fit perfectly with the four lighting zones.

The precise lighting distribution delivers uniform light with high comfort. Thanks to a low threshold increment (TI <6), it enhances safety while ensuring optimum visual performance for tunnel users.

GTLED Pro shown from above, focusing on the top of the luminaire and mounting bracket

LONG-LASTING PERFORMANCE AND SIMPLE MAINTENANCE

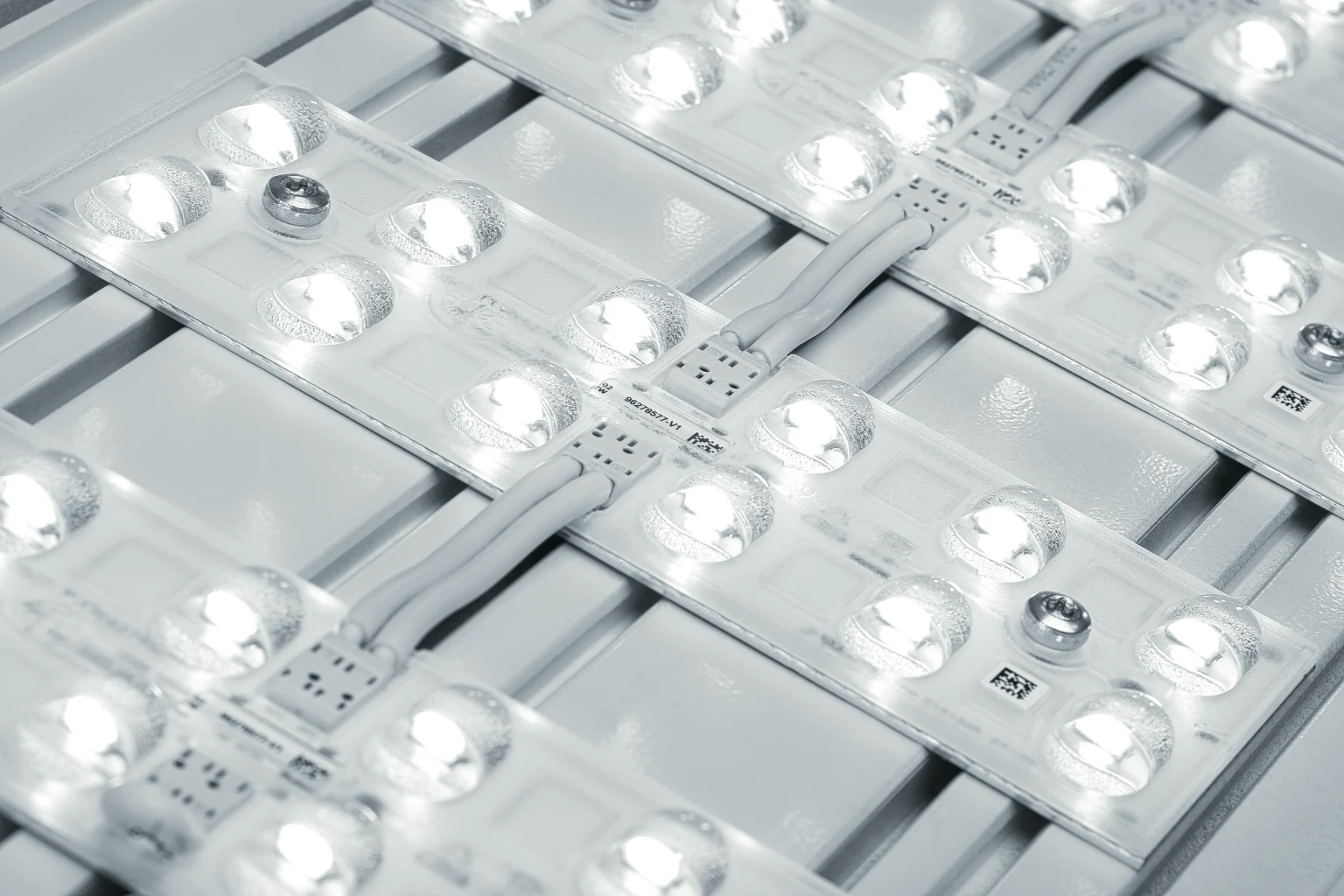

GTLED Pro benefits from a long life LED engine, excellent thermal management with no cooling fins and a body canopy design to prevent collection and retention of dust and contaminants. A careful combination of materials are used to meet the highest levels of corrosion protection (C5), withstanding the aggressive environment of tunnels.

Designed to keep maintenance simple, GTLED Pro can be installed quickly thanks to its compact, lightweight design and remote gear box. It is delivered with toolless connectors and intuitive brackets for wall or ceiling mounting.
