LEO

High Power LED Floodlight

Features

Available in four models, Leo is an extremely powerful and resilient high-power LED floodlight with innovative VARIO, FLEX and ADAPT switching features for maximum on-site flexibility. Delivering up to 150 lm/W, Leo offers selectable colour temperature, lumen output and symmetrical light distribution at the flick of a switch. Designed for demanding environments, Leo combines slim, lightweight construction with reliable C4 corrosion protection and advanced installation features for safe, efficient illumination.

Flex (Lumen Switch)

Change the light intensity on site

Vario (Colour Temp Switch)

Change the colour temperature on site

Adapt (Changeable Light Distribution Switch)

Choose between light distributions on site.

IK08

IP66

C4 Corrosion Resistance

Get to know Leo

Asymmetrical optics for area and perimeter lighting
Up to 150 lm/W energy efficiency
4 different sizes available
Integrated photocell or accessory option available
Corrosion Class C4 for reliable use in more environmentally challenging areas
Light-weight and slim design
Tilted universal mounting bracket allows for flexibility in positioning
Breather membrane to prevent water ingress
Pre-assembled 1 m cable with Quick Connector included
Wide voltage range: 100 – 277 VAC
Surge protection upto 10 kV

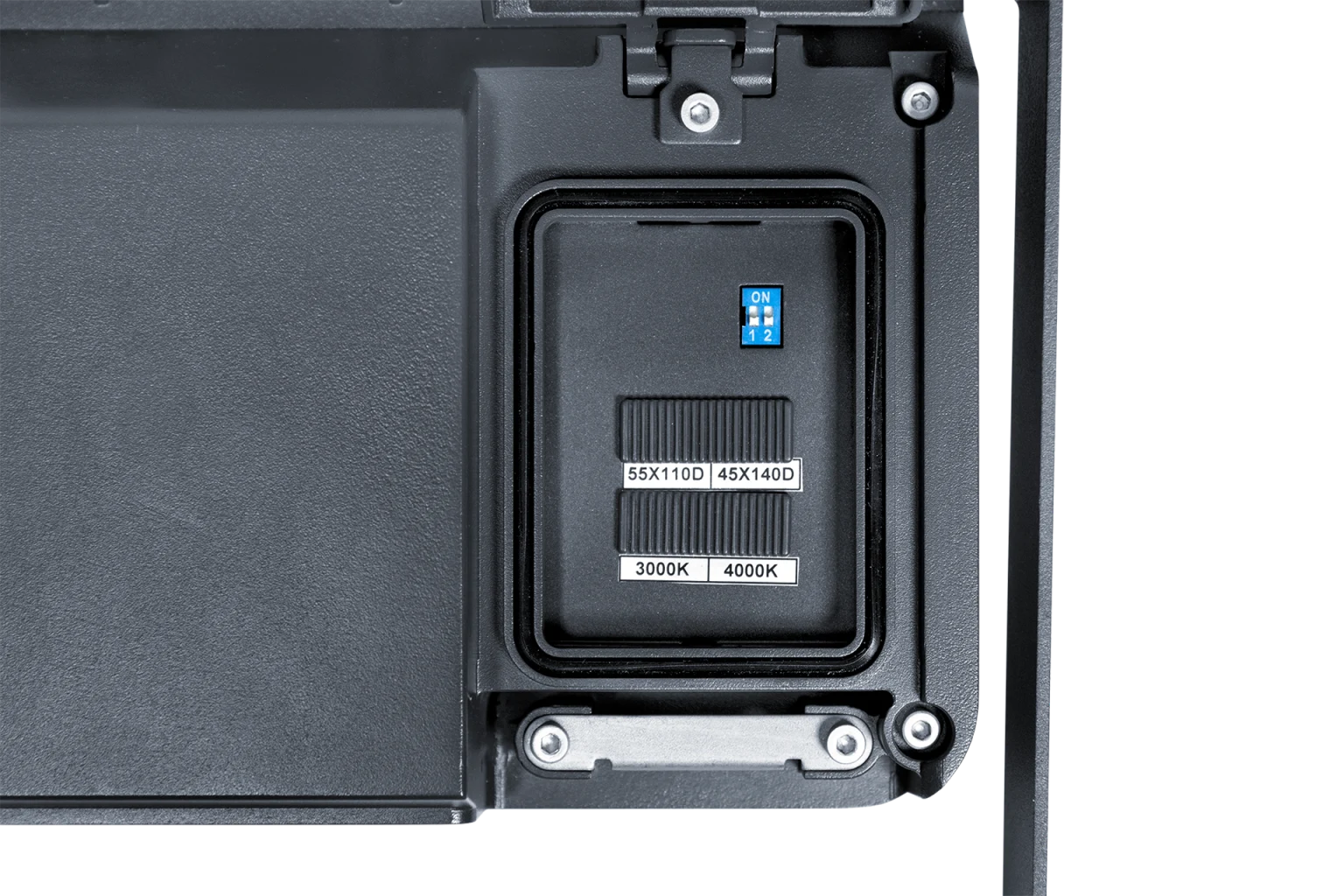

An image showing the CCT and lumen switch on the backside of Leo floodlight

FLEX FEATURE

LUMEN SWITCH OPTION

What is Flex?

The flexibility to define the lighting intensity on site via a switch on the luminaire. One product, multiple lumen packages meaning luminaires featuring the flex features are easy to stock and sell.

Thanks to easy access for the installer , the lighting intensity can be changed before or during the install.

VARIO FEATURE

COLOUR TEMPERATURE SWITCH OPTION

What is Vario?

The flexibility to define the lighting intensity on site via a switch on the luminaire.

One product, multiple lumen packages meaning luminaires featuring the flex features are easy to stock and sell under one SKU.

It also allows you to order one variant and change the intensity as needed before or during the installation.

An image showing the CCT, lumen, light distribution switch on the backside of Leo floodlight

ADAPT FEATURE

LIGHT DISTRIBUTION SWITCH OPTION

What is Adapt?

The ability to define the light distribution on site via a switch on the luminaire. One product, multiple beam distributions, meaning luminaires featuring the ADAPT function are easier to stock, specify and install.

Thanks to easy access for the installer, the light distribution can be changed before or during installation with the flick of a switch.
